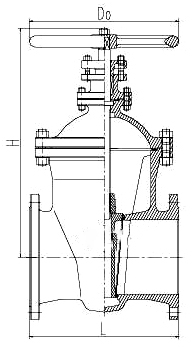

暗桿鑄鋼閘閥 |
 |
·性能規(guī)范 Property specifications |
 |
· 法蘭連接尺寸按JB/T79-94或GB/T9113。Flange connecting dimensions in accordance with
JB/T79-94 or GB/T9113
· 密封面型式 Seat sealing:13Cr/13Cr﹑13Cr/STL
· 閥體材料 Body material:WCB

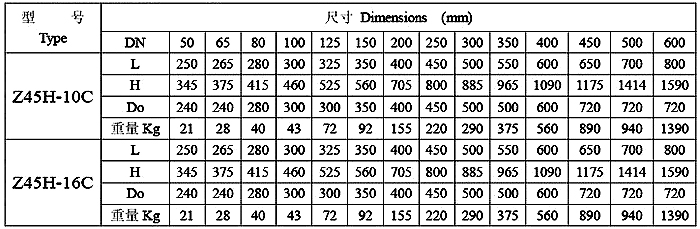

·產(chǎn)品規(guī)格和外形尺寸 Size of products and dimensions
|
 |
|
|
|
|
