高性能蝶閥 |
 |

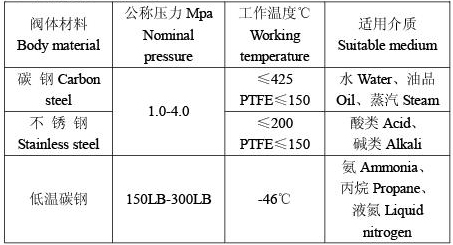

· 性能規(guī)范Property specifications |
 |
· 法蘭連接尺寸按ANSIB16.5。Flange connecting dimensions in accordance with ANSIB16.5
· 密封面型式Seat sealing:13Cr/304、STL/304、STL/316、304/PTFE、304/304、316/316、316L/316L等
· 蝶板材料Disc material:WCB、CF8、CF8M、CF3、CF3M
· 閥體材料 Body material:WCB、LCB、CF8、CF8M、CF3、CF3M

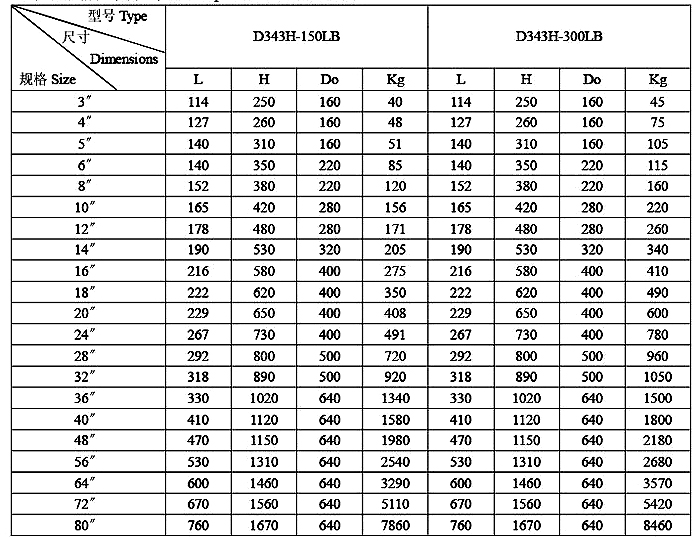

· 產(chǎn)品規(guī)格和外形尺寸 Size of products and dimensions
|
 |
|
|
|
|
