ANSI固定式球閥 |
 |
·性能規范 Property specifications |
 |
· 法蘭連接尺寸按ANSI B16.5。Flange connecting dimensions in accordance with ANSI B16.5

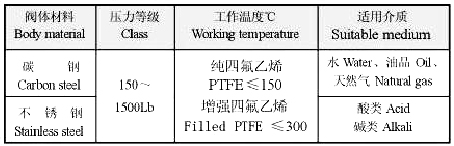

· 閥體材料Body material:A105、WCB、CF8、CF8M、CF3、CF3M
· 驅動型式Actuator type:蝸輪Gear、氣動Pneumatic、電動Electric
· 閥門具有防電、防火結構。Our valves possess the characterristics of Anti-static design and Fire type design

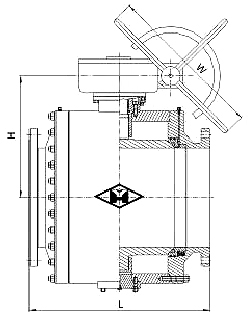

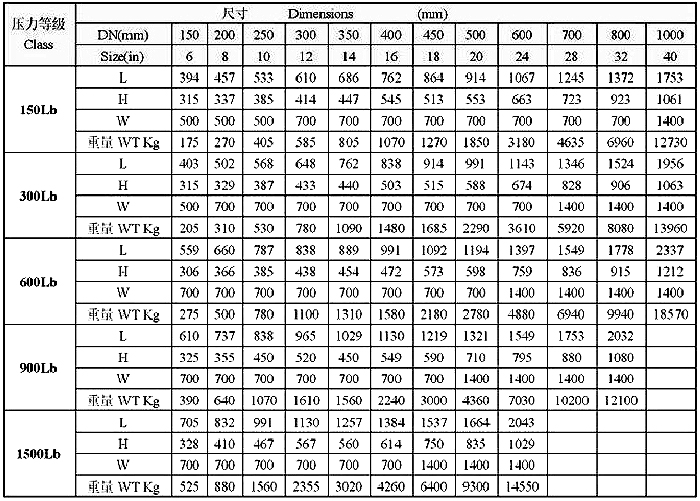

· 產品規格和外形尺寸 Size of products and dimensions
|
 |
|
|
|
|
