| 氣動法蘭球閥 |
 |
|

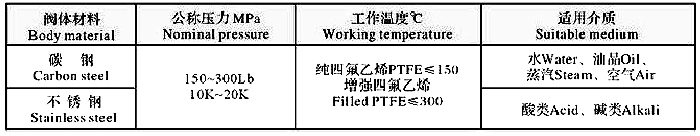

·性能規范 Property specifications |
 |
· 法蘭連接尺寸按ANSI B16.5或JIS2212.2214。Flange connecting dimensions in accordance with ANSI B16.5 or JIS2212.2214
· 閥體材料Body material：WCB、CF8、CF8M、CF3、CF3M
· 球體材料Ball material:SS304.SS316.SS304L.SS316L.Monel
· 用途Purpose:開關型或調節性O(shè)N/OFF or Adjusting Type
· 執行器Actuator :雙作用或單作用Double or Single Action
· 氣源壓力Air（supply）pressure：0.4-0.7MPa
· 閥門具有防電、防火結構。Our valves possess the characterristics of Anti-static design and Fire type design
· 可根據用戶需要加裝電動裝置 Electric actuator is available uponrequest
· 閥門具有防電、防火結構。Our valves possess the characterristics of Anti-static design and Fire type design

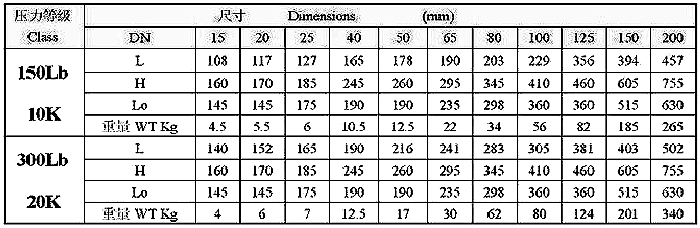

· 產品規格和外形尺寸 Size of products and dimensions
|
 |
| |
|
|
|
