| 氣動球閥 |
 |
|
性能規范 Property specifications |
 |
· 法蘭連接尺寸按JB/T79-94或GB/T9113。Flange connecting dimensions in accordance with
JB/T79-94 or GB/T9113

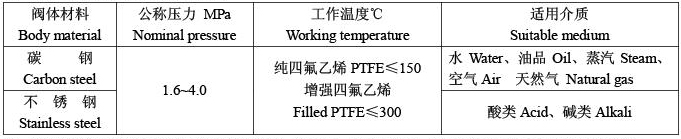

· 閥體材料 Body material：WCB、CF8、CF8M、CF3、CF3M
· 用途Purpose：開關型或調節型 ON/OFF or Adjusting Type
· 執行器Actuator：雙作用或單作用 Double or Single Action
· 氣源壓力Air (supply) pressure：0.4~0.7M
· 可根據用戶需要加裝防靜電、防火結構。Anti-static design and Fire type design is available upon request

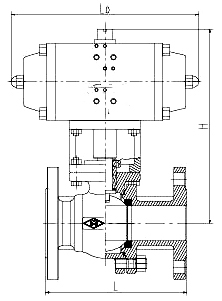

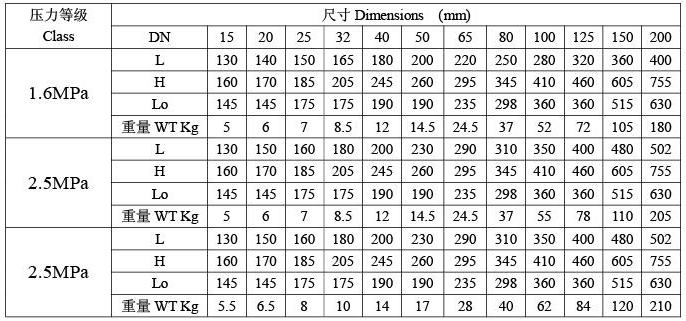

· 產品規格和外形尺寸 Size of products and dimensions
|
 |
| |
|
|
|
