電站閥門(電動閘閥) |
 |
性能規范 Property specifications |
 |
· 焊接端連接尺寸按 JB/T3595-2002或ANSI B16.25。Weld Ends connecting dimensions in accordance with
JB/T3595-2002 or ANSI B16.25
· 密封面型式 Seat sealing:13Cr/13Cr、13Cr/STL 、STL/STL

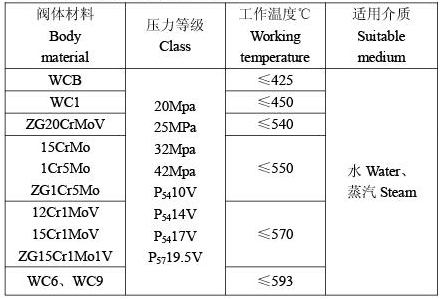

· 閥體材料 Body material:WCB、WC1、WC6、WC9、1Cr5Mo、ZG1Cr5Mo、15CrMo、12Cr1MoV
15Cr1MoV、ZG15Cr1Mo1V、ZG20CrMoV等

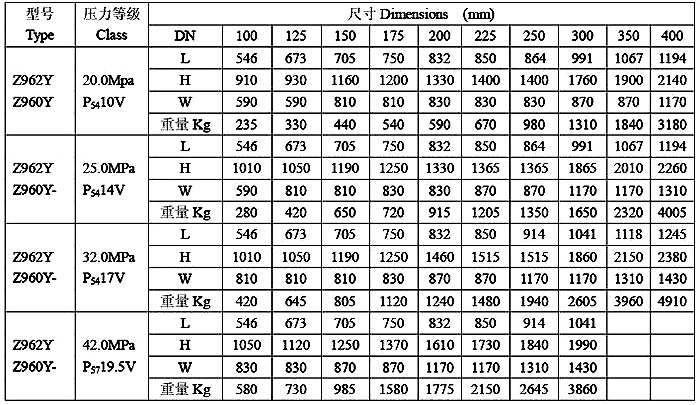

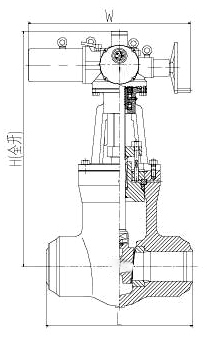

· 產品規格和外形尺寸 Size of products and dimensions
|
 |
|
|
|
|
