| ANSI鑄鋼閘閥 |
 |
性能規范 Property specifications
· 法蘭連接尺寸按ANSI B16.5或JIS2212、2214。Flange connecting dimensions in accordance with ANSI B16.5 orJIS2212、2214
· 焊接端連接尺寸按ANSIB16.25。Weld end connecting dimensions in accordance with ANSIB16.25
· 閥體材料Body material：A105、F11、F22、F304、F316、F304L、F316L
· 密封面型式Seat sealing：13Cr/13Cr、13Cr/STL、STL/STL、304/304、316/316、304/STL、316/316L等
· 可根據用戶需要加裝電動裝置或傘齒輪裝置。 Electric actuator orbevelgear is available upon request

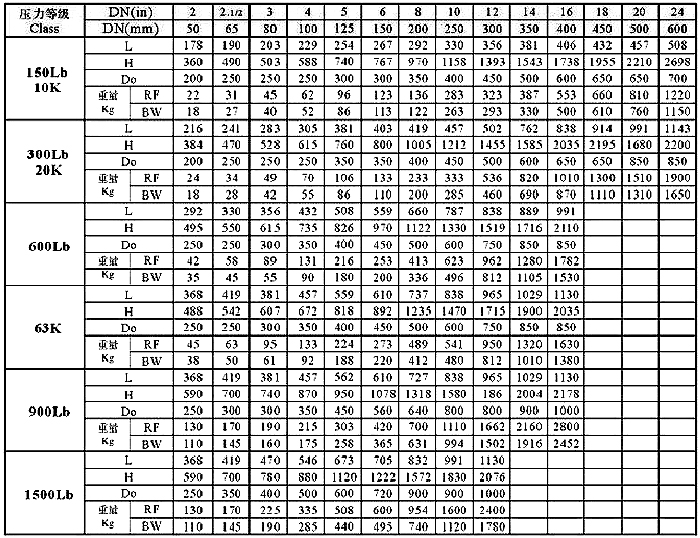

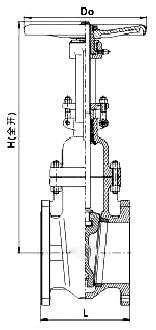

· 產品規格和外形尺寸 Size of products and dimensions
|
 |
|
|
| |
| |
|
|
|
