Aka--Products
|
| Metal seal butterfly valve pneumatic |
 |
|
· Property specifications |
 |
· Flange connecting dimensions in accordance with
JB/T79-94 or GB/T9113
· Seat sealing：13Cr/304、STL/304、STL/316、304/PTFE、304/304、316/316、316L/316LEtc.
· Disc material：WCB、CF8、CF8M、CF3、CF3M
· Body material：WCB、CF8、CF8M、CF3、CF3M
· Purpose： ON/OFF or Adjusting Type
· Actuator： Double or Single Action
· Air (supply) pressure：0.4～0.7Mpa

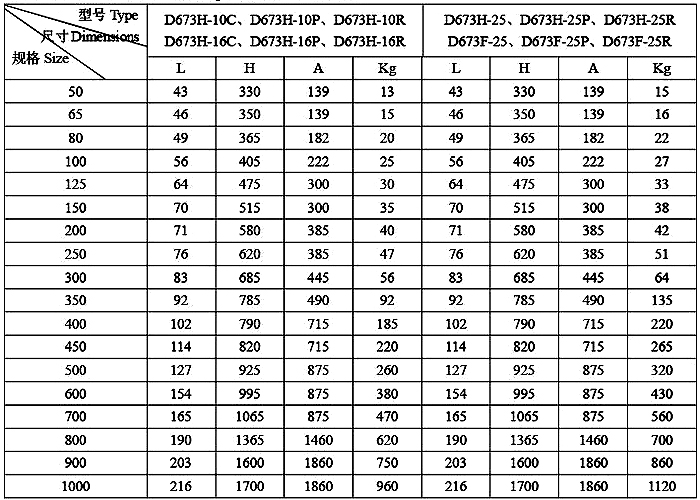

· Size of products and dimensions
|
 |
| |
|
|
|
