Aka--Products
|
| Pneumatic valve |
 |
|
|
|
· Property specifications
·Flange connecting dimensions in accordance with GB/T9113
· Body material：HT200、QT450、WCB、CF8、CF8M、CF3、CF3M.
· Seat material： NBR、 CR、 EPDM、 Viton、 PTFE
· Disc material：QT450、CF8、CF8M、CF3、CF3M、Monel、HastelloyC
· Suitable medium：Water、Oil、Air、 Acid、 Alkali
·Working temperature：80～150℃
· Nominal pressure：1.0～1.6MPa
·Purpose： ON/OFF or Adjusting Type
·Actuator：Double or Single Action
·Air (supply) pressure：0.4～0.7Mpa

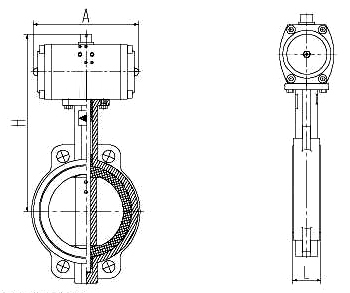

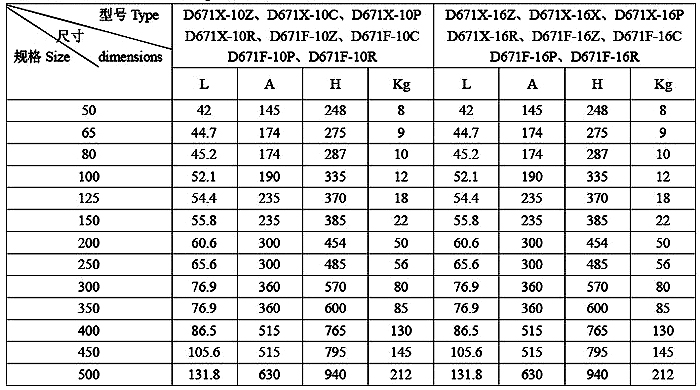

· Size of products and dimensions
|
 |
| |
|
|
|
